Fusible Golf Saddle for Swing Joints
- 100% Corrision resistant with NO Metal Components.
- PE4710 bimodal resin with a PENT VALUE OF > 10,000 HOURS PER ASTM F143**
- Pressure Rated at 335 PSI
- Double O-ring Seal with proprietary male threads
- For use on DR17 through DR7 or PE 100 pipe
- Available size (1, 1.25 & 1.5 inches)
- Optional Proprietary PVC Transition Elbow to bei integrated with other Swing Joints
- Eliminates Mechanical Saddle and Compression Service Tee Leaks
- Available in Imperial and Metric Sizes
Imperial Models
| Item Code | Description |
| WSGS150-020 | 1.5″ Alwasail Fusible Golf Saddle 2″ IPS Pipe |
| WSGS150-030 | 1.5″ Alwasail Fusible Golf Saddle 3″ IPS Pipe |
| WSGS125-040 | 1.5″ Alwasail Fusible Golf Saddle 4″ IPS Pipe |
| WSGS125-020 | 1.25″ Alwasail Fusible Golf Saddle 2″ IPS Pipe |
| WSGS125-030 | 1.25″ Alwasail Fusible Golf Saddle 3″ IPS Pipe |
| WSGS125-040 | 1.25″ Alwasail Fusible Golf Saddle 4″ IPS Pipe |
| WSGS100-020 | 1″ Alwasail Fusible Golf Saddle 2″ IPS Pipe |
| WSGS100-030 | 1″ Alwasail Fusible Golf Saddle 3″ IPS Pipe |
| WSGS100-040 | 1″ Alwasail Fusible Golf Saddle 4″ IPS Pipe |
Metric Models
| Item Code | Description |
| WSGS150-063 | 1.5″ Alwasail Fusible Golf Saddle 63mm IPS Pipe |
| WSGS150-075 | 1.5″ Alwasail Fusible Golf Saddle 75mm IPS Pipe |
| WSGS125-090 | 1.5″ Alwasail Fusible Golf Saddle 90mm IPS Pipe |
| WSGS125-063 | 1.25″ Alwasail Fusible Golf Saddle 63mm IPS Pipe |
| WSGS125-075 | 1.25″ Alwasail Fusible Golf Saddle 75mm IPS Pipe |
| WSGS125-090 | 1.25″ Alwasail Fusible Golf Saddle 90mm IPS Pipe |
| WSGS100-063 | 1″ Alwasail Fusible Golf Saddle 63mm IPS Pipe |
| WSGS100-075 | 1″ Alwasail Fusible Golf Saddle 75mm IPS Pipe |
| WSGS100-090 | 1″ Alwasail Fusible Golf Saddle 90mm IPS Pipe |
Transition Elbow Female X Female ACME Thread

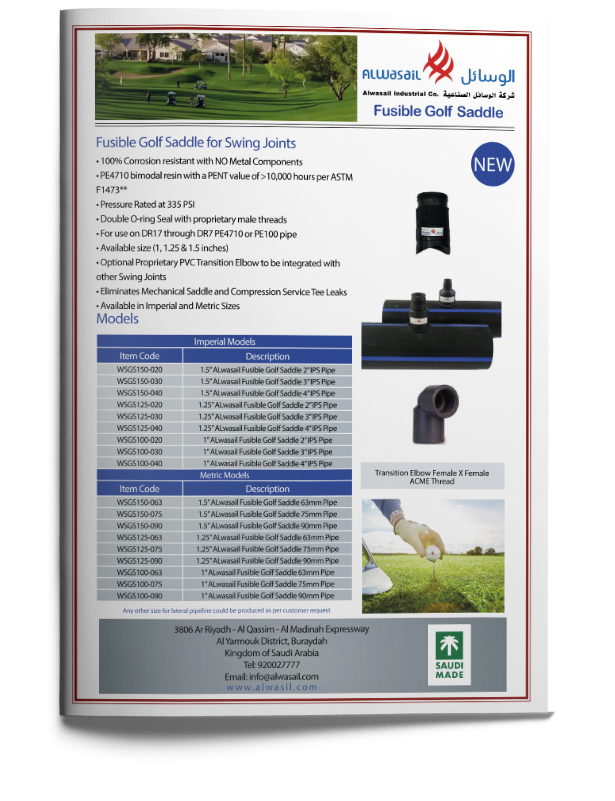

For more information about this product and its related items, you may check and browse the catalog below:
