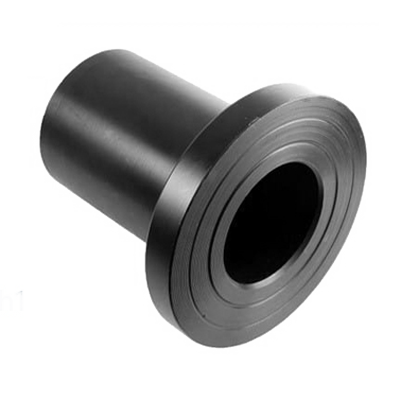

Injected Molded Fittings (Flange Adaptor)

Alwasail HDPE Injected Molded Fittings (Flange Adaptor) are available to meet your needs in compliance with as per standards (Compatible with D 3350, PE 4710, and NSF/ASNI 61 for water portable).

Made in the KSA and produced from high-quality HDPE material.

فئة : قطع اللحام الحراري ( الحقن )

طلب عرض سعر

04
Y Shape PE100

Y Shape PE100 — Available 50mm to 160mm standard sizes.

16 BAR
Injected Spigot
|
SDR-11-100 CONFIG

ITEM CODE	d1,d2,d3	s1,s2,s3	l1	l2,l3	Z	Weight (Kg)
SGY45T11X50	50	4.6	68	68	237	0.2896
SGY45T11X63	63	5.8	68	80	284	0.5704
SGY45T11X75	75	6.8	70	90	311	0.8566
SGY45T11X90	90	8.2	82	91	359	0.1417
SGY45T11110	110	10	90	104	400	0.2338
SGY45T11160	160	14.6	100	110	495	0.5651

IPS Pipe & Fitting Technical Data
